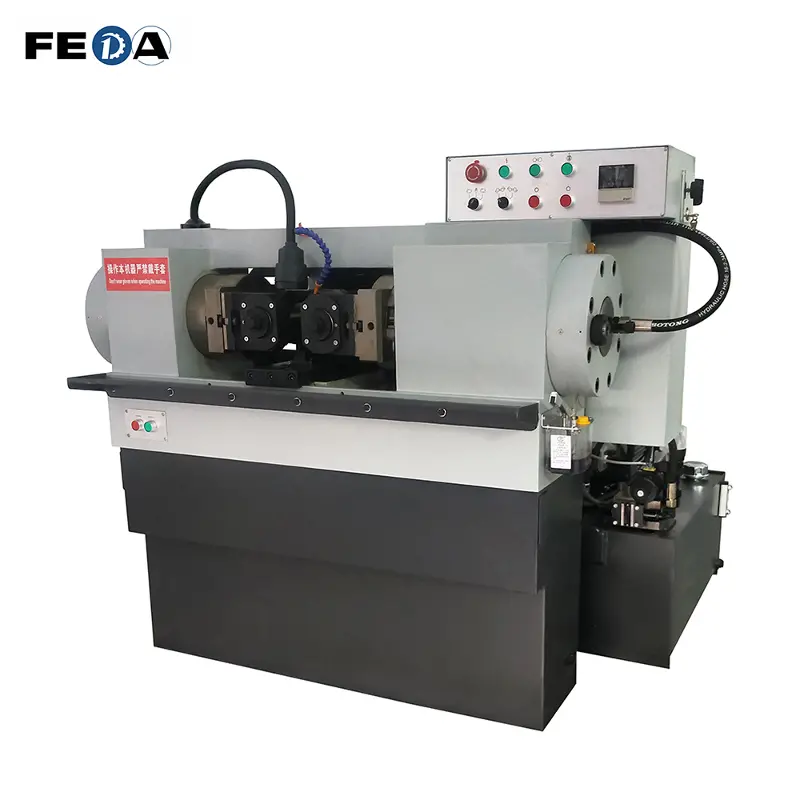

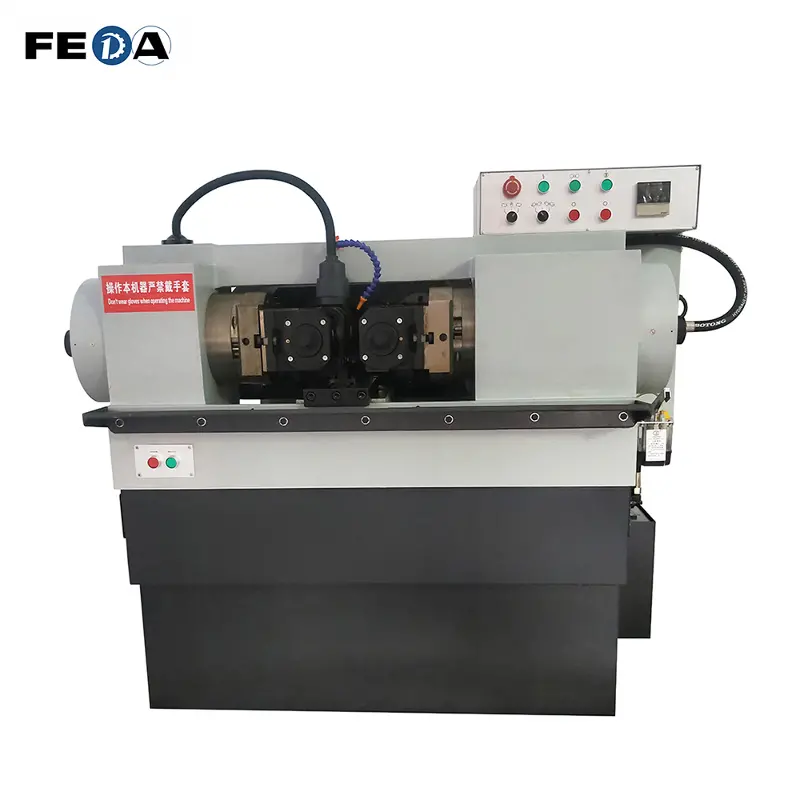

FD-15T steel bar thread rolling machine industrial thread making machine set screw making machine
2025-03-12T09:23:06Z
Company: Feda Industry Co., Ltd
Location: China - Guangdong,No. 608, Hong Hai Building, Hongxing Community, Songgang Street, Bao'an District, Shenzhen, China.
Price: 10850/set
Contact: Sienna Lee(Salesperson)
Contact Me:

 Mobile：+86 13312913043

1. Automatic feeding with adjustable brackets

2. Speed is adjustable for different products

3. 54mm hole diameter for SKD11/DC53 thread rolling dies

4. Max. Rolling pressure is about 150KN

5. It is easy to operate and maintain the machine

6. CE, ISO9001-2008

Specification
Working diameter 4-60mm
Thread pitch 0.8-5mm
Thread length In feed or Thru feed
Spindle speed 28/35/45/56rpm
Outside diameter of rolling die 135-178mm
Inside diameter of rolling die 54mm
Thickness of rolling die 120mm
Min.center distance between die spindles 120mm
Max.center distance between die spindles 240mm
Main motor 5.5KW
Hydraulic motor 2.2KW
Max. Rolling pressure 15T
Supply voltage 380V 3P 50Hz
Weight(reference) 2500(KG)
Dimension(L*W*H) 1560*1550*1260 mm
Package Dimension(L*W*H) 1600*1540*1550 mm
FD-15T steel bar thread rolling machine industrial thread making machine set screw making machine FD-15T steel bar thread rolling machine industrial thread making machine set screw making machine
