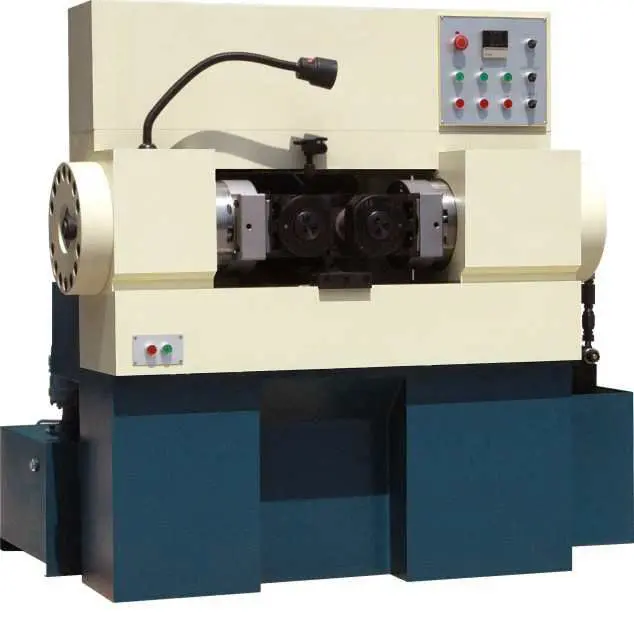

FD-25T thread rolling machine for nails industrial thread making machine thread rolling machine part
2025-03-12T09:28:27Z
Company: Feda Industry Co., Ltd
Location: China - Guangdong,No. 608, Hong Hai Building, Hongxing Community, Songgang Street, Bao'an District, Shenzhen, China.
Price: 22950/set
Contact: Sienna Lee(Salesperson)
Contact Me:

 Mobile：+86 13312913043

1. Automatic feeding with adjustable brackets

2. Speed is adjustable for different products

3. 75mm hole diameter for SKD11/DC53 thread rolling dies

4. Max. Rolling pressure is about 250KN

5. It is easy to operate and maintain the machine

6. CE, ISO9001-2008

Specification
Working diameter 12-80mm
Thread pitch 1.0-8mm
Thread length In feed or Thru feed
Spindle speed 16/27/37/62rpm (variable speed)
Outside diameter of rolling die 170-220mm
Inside diameter of rolling die 75mm
Thickness of rolling die 160mm
Feed stroke 0-12mm
Total machine power 14KW
Max rolling pressure 25T
Supply voltage 380V 3P 50Hz
Weight(reference) 3560(KG)
Package Dimension(L*W*H) 1630*1650*1750mm
Dimension(L*W*H) 1580*1600*1650mm
FD-25T thread rolling machine for nails industrial thread making machine thread rolling machine part
