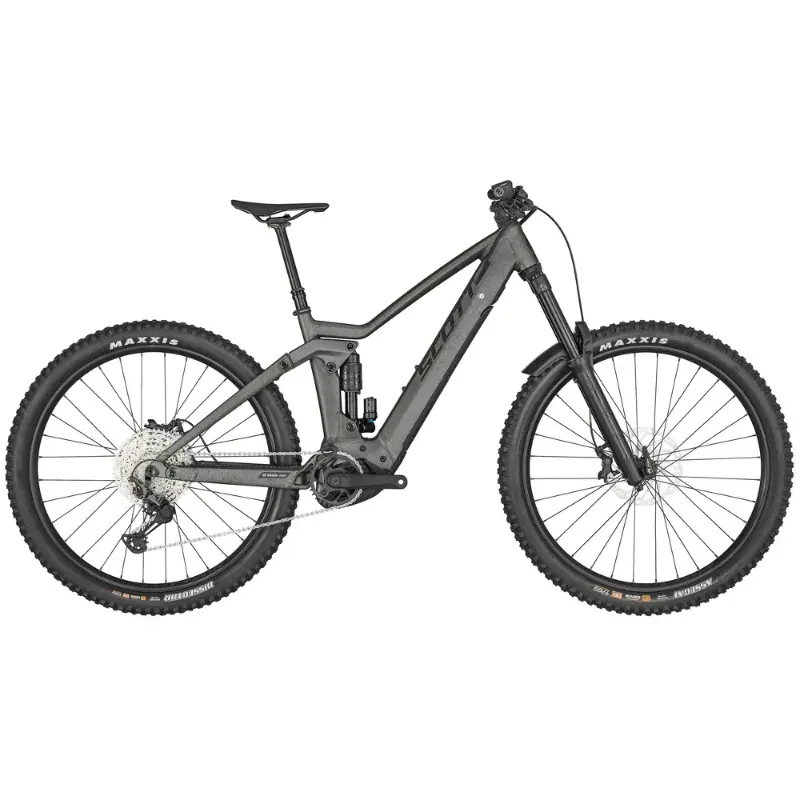

2024 Scott Ransom E-Ride 920 Mountain Bike

Product Description

2024 Scott Ransom E-Ride 920 Mountain Bike

Having won nearly every test in which it was featured, there was only one thing we could do to make the Ransom more fun and versatile: make an E-Bike version. Ransom eRIDE - more ups, more down, more hoots, more hollers, more Ransom.



SPECIFICATION :

FRAME	Alloy Frame / Virtual 4 link kinematic VLK 27.5" and 29" compatible / geo adj. / Boost 148x12mm 180mm travel / Bosch Gen4 /Integr. removable Battery Tapered Headtube E2, Central Kickstand Mount
TRAVEL	Front: 180mm / Rear: 180mm
FORK	RockShox ZEB / Air 15x110mm QR axle tapered steerer / Reb. Adj. / 180mm travel
REAR SHOCK	FOX Float X2 Performance / Air LSC,LSR w/2-Pos. lever
DRIVE UNIT	Bosch Performance CX EU: 25kmh / INT: 20mph
BATTERY	PowerTube 625Wh
DISPLAY	Bosch Purion
CHARGER	4A Charger
REAR DERAILLEUR	Shimano XT / 12 Speed
SHIFTERS	Shimano SL-M6100
CRANKSET	FSA CK-745 165mm / 34T
CHAINGUIDE	SCOTT Custom
CHAINRING	FSA WB604 / 34T / DM / Steel
CHAIN	Shimano CN-M6100
CASSETTE	Shimano CS-M6100 / 10-51 T
BRAKES	Shimano BR-MT520 4 Piston
ROTOR	Front: SM-RT64 CL 203mm / Rear: RT-EM600 CL 203mm
HANDLEBAR	Syncros Hixon 2.0 Rise / Alloy 6061D.B.20mm rise / 8° / 800mm Syncros Pro lock-on grips
H'STEM	Syncros XM1.5 / Alloy 6061 integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8"
SEATPOST	Syncros Duncan Dropper Post 2.531.6mm / S size 125mm / M size 150mm / L & XL size 170mm
SEAT	Syncros Tofino 2.0 Regular CRMO rails
HEADSET	Acros Blocklock / Tapered 1.5"-1 1/8"OD 52/62mm / ID 44/56mm
HUB (FRONT)	Shimano HB-MT410-B CL / 15x110mm
HUB (REAR)	Shimano FH-MT410-B CL / Boost 12x148mm
SPOKES	Stainless Black
RIMS	Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
FRONT TIRE	Maxxis Assegai 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
REAR TIRE	Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
LIGHTS	Bosch Light Cable pre-installed F&R
EXTRAS	RockShox Fork Fender
APPROX WEIGHT IN KG	24.80
APPROX WEIGHT IN LBS	54.67
MAX.SYSTEM WEIGHT	128 kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
